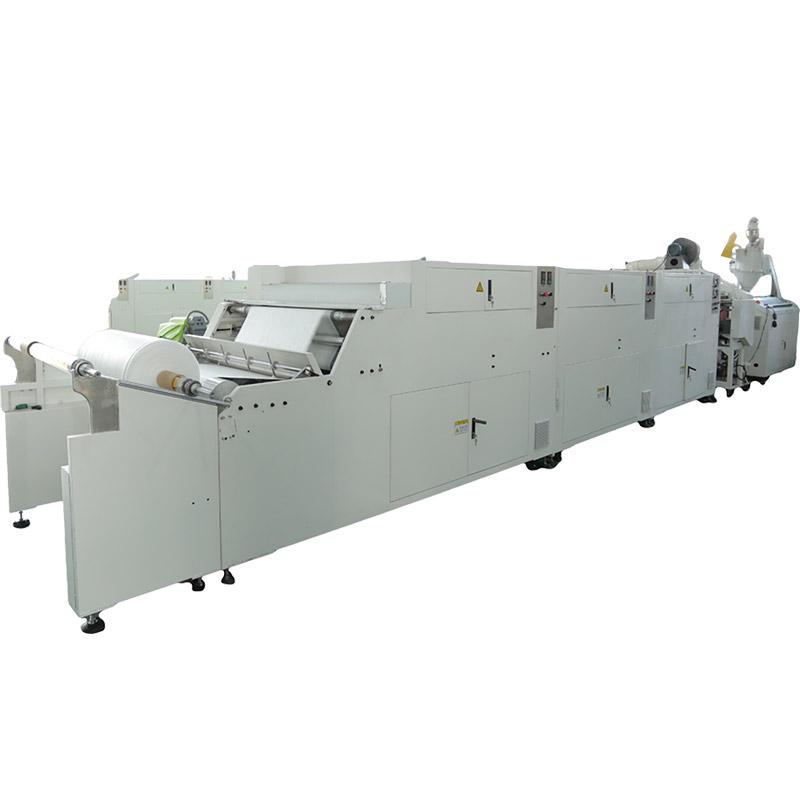

N95 N99 Standard Full Automatical 880mm Online Water Electret Melt Blown Fabric Producion Line V.0
Product Details:
The PP meltblown nonwoven production line is a polymer melt extruded from a screw extruder. The polymer is extremely stretched by high-speed hot air or other means to form very fine short fibers, which are aggregated to A web is formed on a roller or a screen curtain, and is finally reinforced by self-adhesion or thermal bonding. Its unique properties are widely used in mask filter materials, thermal insulation filling materials, medical health materials, wiping materials, etc.
Applications of Tongwei Meltblown Fabric
● Medical supplies
surgical masks, disposable surgical drapes, surgical drapes, shoe covers, etc.
● Sanitary materials
Baby diapers, adult incontinence pads, women's sanitary napkins, other cleaning applications, etc.
● Packaging supplies
Shopping bags, rice bags, tea bags, clothing packaging, etc.
● Household products
Spring cloth, bedding, seat products, etc
● Sanitary materials
Baby diapers, adult incontinence pads, etc.
● Technical engineering
Civil engineering, construction engineering, agricultural field, automobile field, etc.
Technical Parameters:
|
Model No.
|
MY-880
|
|
Total Power
|
260kw
|
|
Power Supply
|
380VAC
|
|
Width of Nozzle
|
820mm
|
|
Mechanical Line Speed
|
4-20m/min
|
|
GSM Range
|
20-80g/m²
|
|
Workers Needed
|
20-80g/m²
|
|
Production Capacity
|
500-800kg/day
|
|
Water Consumption
|
500kg/h
|
|
Total Weight
|
2500kg
|
|
Total Size
|
12m*2m*2.8m
|
Components:
① Meltblown Host
② Electronic Control System
③ Roots Blower
④ Filter
⑤ Metering Pump
⑥ Spinneret
⑦ Meltblown Die
⑧ Suction Fan
⑨ Pure Water System
⑩ Vacuum Pump
⑪ Web Former
⑫ Drier
⑬ Slitter-rewinder
